Buttons

Learn about the button layout and key actions

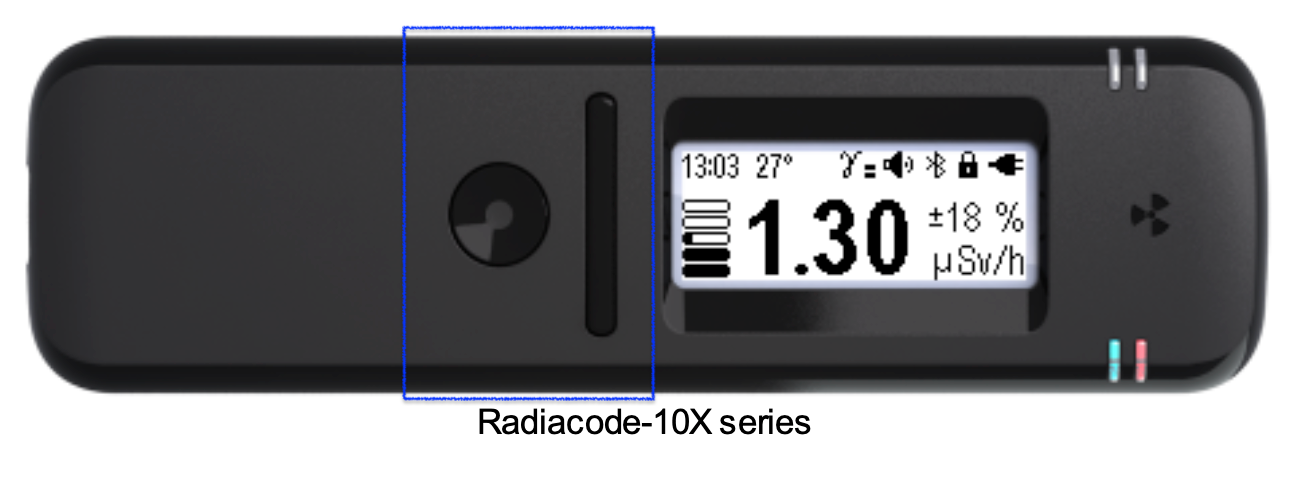

An overview of the device with buttons

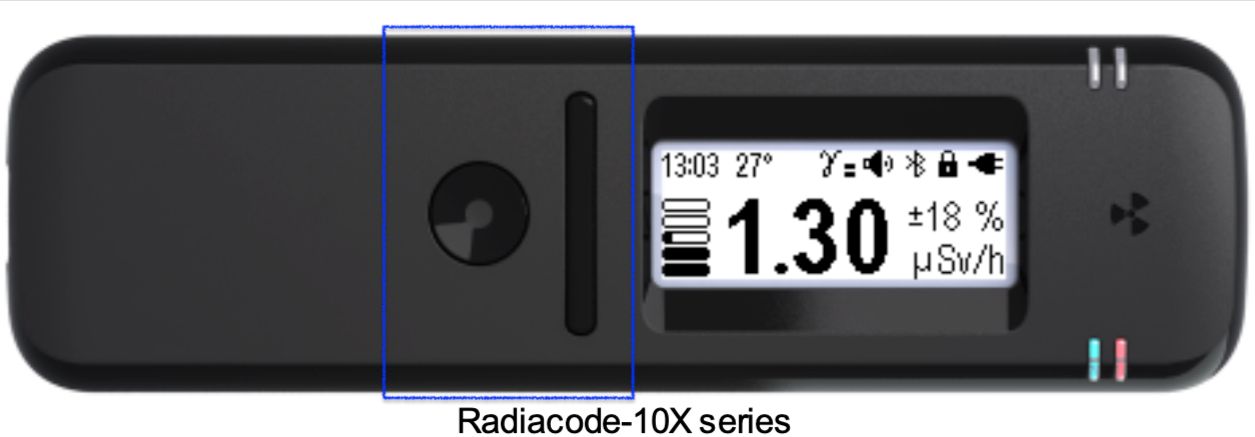

An overview of the device with buttons

Overiew

Radiacode 10X (and 11X) devices feature three buttons:

  1. Round button for turning on and action confirmation
  2. "Up" swing button
  3. "Down" swing button

Buttons can be pressed in two ways:

  1. Short press
  2. Long press (usually 2 to 3 seconds)

If the vibration is turned on, every button press will be accompanied with a short vibration.

Round button

With a long press, the round button can:

  • Turn on the device with a long press if it's off
  • Unlock the device with a long press
  • Call the menu to change the mode or access the settings menu
  • Confirm that the maximum alarm levels were seen
  • Complete actions in some setup screens

With a short press, the round button can:

  • Lock the swing buttons
  • Return from the menu to display modes
  • Confirm menu selections
  • Toggle selection options
  • Turn off alarms
Swing buttons

Keep in mind that after a period of inactivity, swing buttons will be locked. To find out if the device is locked, check the display backlight - it will be turned off. To unlock them, press and hold the round button for 2-3 seconds.

With a short press, swing buttons can:

  • Move between menu items
  • Set numerical values
  • Change options depending on the selected mode.

Depending on the screen orientation, the swing buttons direction may change.

Turning on and off

These buttons can be used to turn on and turn off the device. To see how this can be done, refer to the Turning ON and OFF article.
