About The Device

Device Components

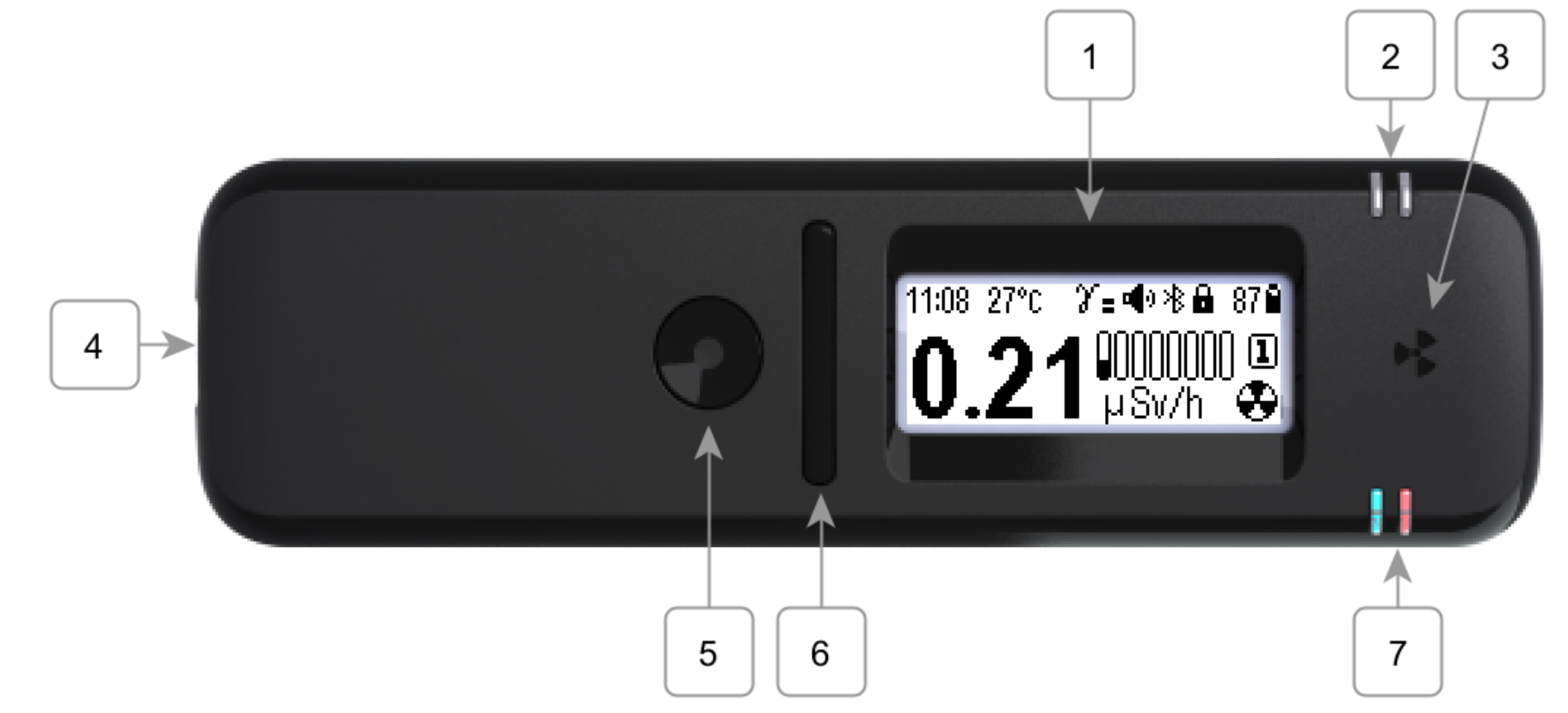

Components, controls, and indicators of Radiacode ZERO

  1. LCD display
  2. Ambient light sensor
  3. Location of the radiation sensor, digital thermometer, and orientation sensor
  4. USB Type-C port for charging and data exchange
  5. Power/confirm button
  6. Rocker buttons (up and down)
  7. LED indicators: charging (blue); photon detection (green in normal conditions, red when an alarm threshold is exceeded)

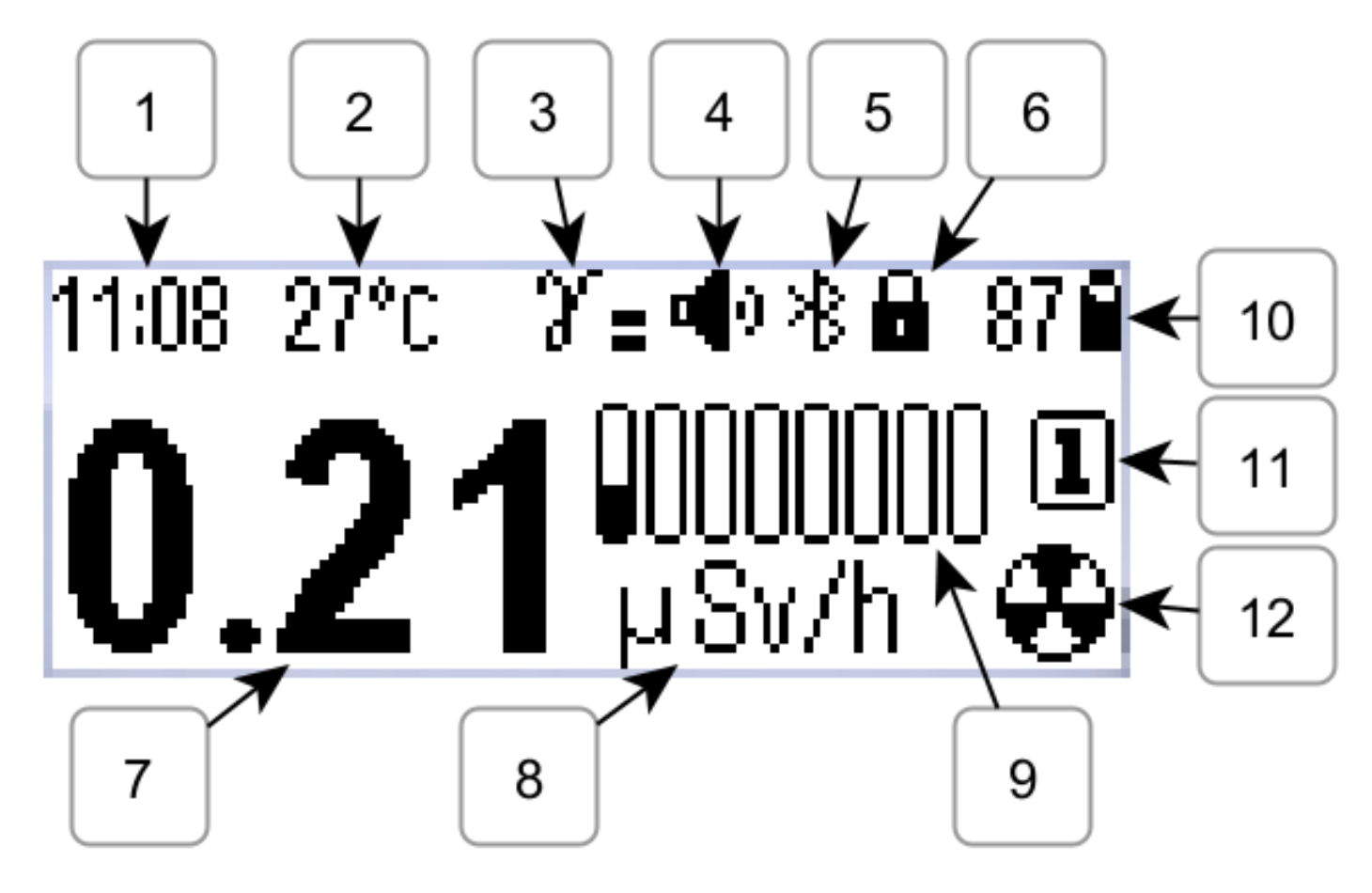

Main Display Indicators
  1. Current time set on the device
  2. Current sensor temperature
  3. Threshold exceedance indicator and threshold level
  4. Sound indication status
  5. External device connection status (Bluetooth, USB)
  6. Key lock indicator
  7. Current radiation level estimate
  8. Radiation level units
  9. Graphical dose rate indicator
  10. Battery level and charging status
  11. Operating range indicator (1 — pulse mode, 2 — current mode)
  12. Selected display mode indicator
