About the device

Design elements

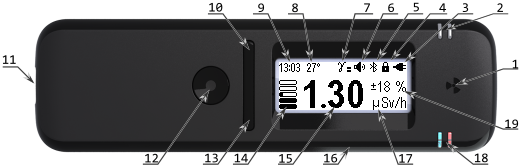

Design elements, controls and indicators of the device:

  1. Location of the radiation sensor, digital thermometer and orientation sensor
  2. Ambient light sensor for the screen backlight in the dark
  3. Built-in battery status: charge level, charging, end of charging (powered from an external source)
  4. Control button lock sign
  5. External connection: USB, Bluetooth
  6. Sound status
  7. Presence, source and level of alarm
  8. Radiation sensor temperature
  9. Current time
  10. Swing button “up”; “down” when the display image is flipped
  11. USB Type-C connector for charging the device and data exchange
  12. Power and confirmation button, round
  13. Swing button “down”; “up” when the display image is flipped
  14. Graphical representation of dose rate
  15. Numerical representation of dose rate
  16. Speaker
  17. Dose rate units
  18. Light indication: charging (blue); photon registration (green — normal, red — alarm threshold exceeded)
  19. Dose rate estimation error
